GEYA GRT8-M1 Multifunction Time Relay

$19.00
$19.00 $30.00
Sale Sold out

Low stock: 1 left

Condition: New

The GEYA GRT8-M1 is a versatile multifunction time relay designed for precise timing control across electrical appliances, lighting, heating, motors, pumps, and fans. Featuring 10 distinct timing functions and 10 broad time ranges from 0.1 seconds to 10 days, it easily adapts to a wide variety of industrial and commercial automation setups.

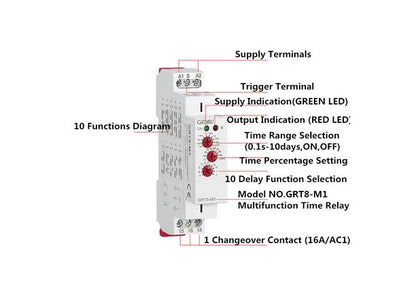

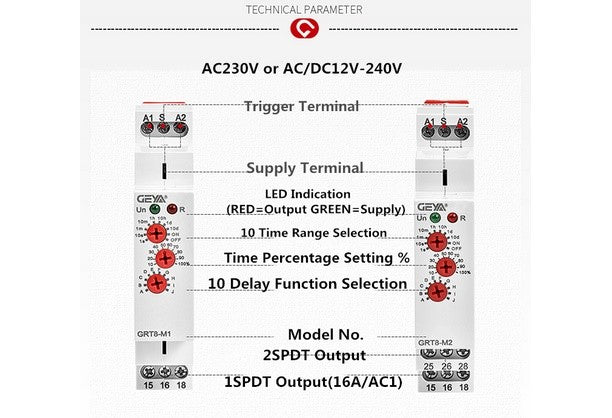

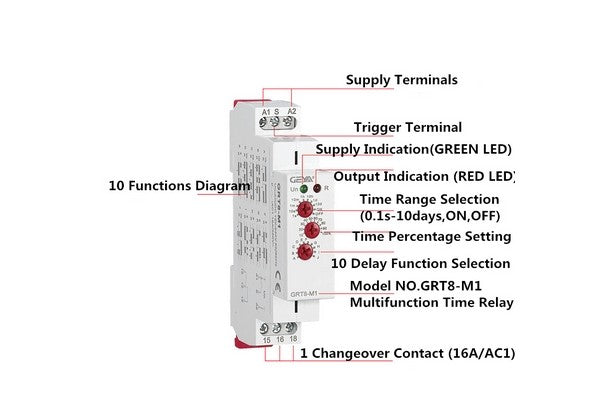

Built with a compact 1-module DIN rail profile, it offers clear LED status indicators and rotary switch adjustments for straightforward configuration. Its universal voltage compatibility and reliable SPDT output provide dependable switching performance within standard control panels.

Brand GEYA
Model Number GRT8-M1
Product Type Multifunction Time Relay
Functions 10 (A, B, C, D, E, F, G, H, I, J)
Supply Terminals A1-A2
Voltage Range AC/DC 12-240V (50-60Hz) / AC 230V (50-60Hz)
Time Ranges 0.1 s – 10 days, ON, OFF
Output 1 × SPDT
Current Rating 16A (AC1)
Switching Voltage 250VAC / 24VDC
Time Setting Potentiometer
Repeat Accuracy 0.2%
Mounting Type DIN Rail EN/IEC 60715
Protection Degree IP40 front panel / IP20 terminals
Dimensions 90 × 18 × 64 mm
Product Weight 63 g
Operating Temperature -20°C to +55°C
Standards EN 61812-1, IEC 60947-5-1
