Illuburg LM7-150V24G LED Power Supply 24V 151W IP67
Low stock: 1 left
Condition: New
Couldn't load pickup availability

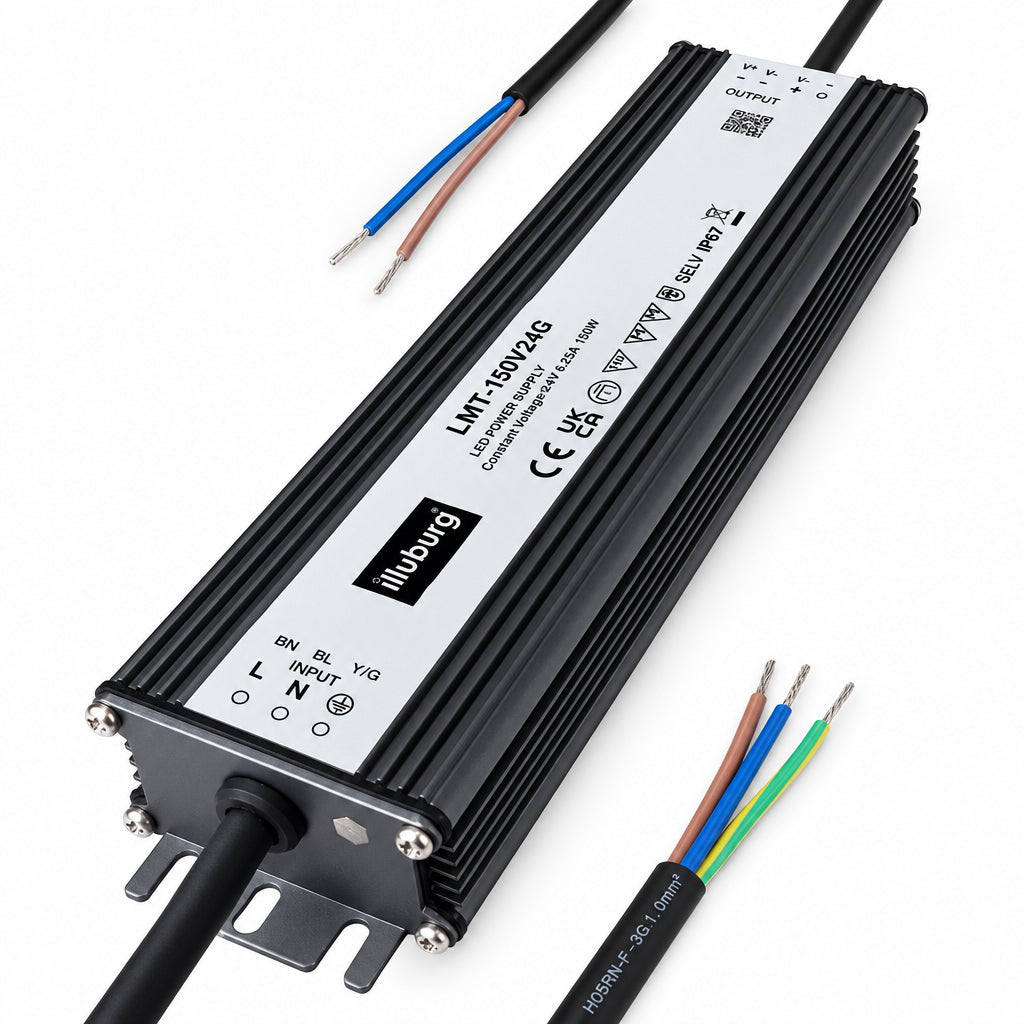

The Illuburg LM7-150V24G is a high-performance 24 Vdc constant voltage LED power supply delivering up to 6.3 A and 151 W of reliable, flicker-free power according to IEEE 1789. Engineered for durable performance, it features an IP67-rated waterproof housing with an integrated adjusting screw that allows fine-tuning of the output voltage by +/-10% to prevent voltage drop over long LED strip runs.
Designed for built-in installation, this non-dimmable driver offers an exceptional operational lifespan of over 90,000 hours and includes comprehensive automatic protection against short circuits, overcurrent, overvoltage, and overheating.
| Brand | Illuburg |
| Model Number | LM7-150V24G |
| Product Type | LED Power Supply |
| Output Voltage | 24 Vdc const. |
| Output Current | 0...6.3 A |
| Nominal Output Power | 151 W max. |
| Rated Input Voltage (AC) | 100...277 Vac |
| Input Voltage Range (AC) | 90...305 Vac |
| Rated Input Voltage (DC) | 125...420 Vdc |
| Mains Frequency | 50/60 Hz |
| Efficiency | 93 % (230 Vac, Full Load), 91 % (120 Vac, Full Load) |
| Power Factor (λ) | ≥ 0.95 (Full Load), ≥ 0.9 (70…100% Load) |
| Dimmable | No |
| Ingress Protection Rating | IP67 |
| Protection Class | I |
| Operating Ambient Temperature | -40...+50 °C |
| Max Case Temperature | 90 °C |
| Lifetime | ≥ 90,000 h ≤ 75 °C case temperature |
| Short Circuit Protection | Yes |
| Over Current Protection | Yes (120...160%) |
| Over Voltage Protection | Yes (110...150%) |
| Over Temperature Protection | Yes (90 °C < Tc < 110 °C) |

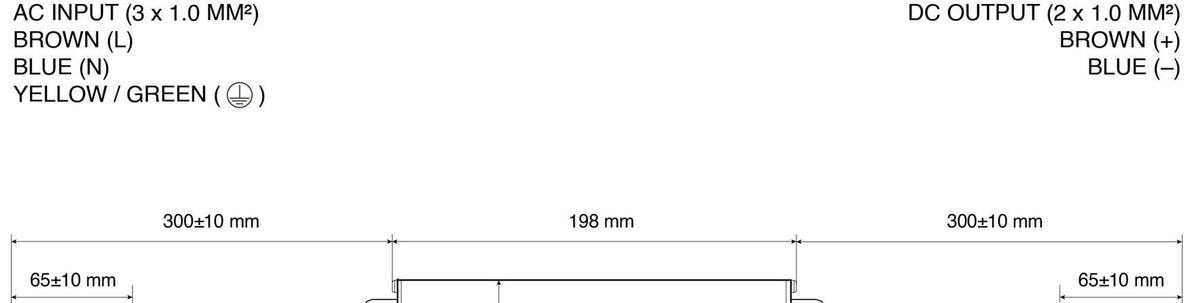

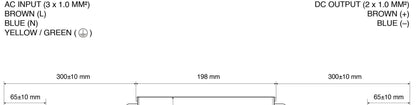

| Cable Length (Input/Output) | 30 cm / 30 cm |
-
