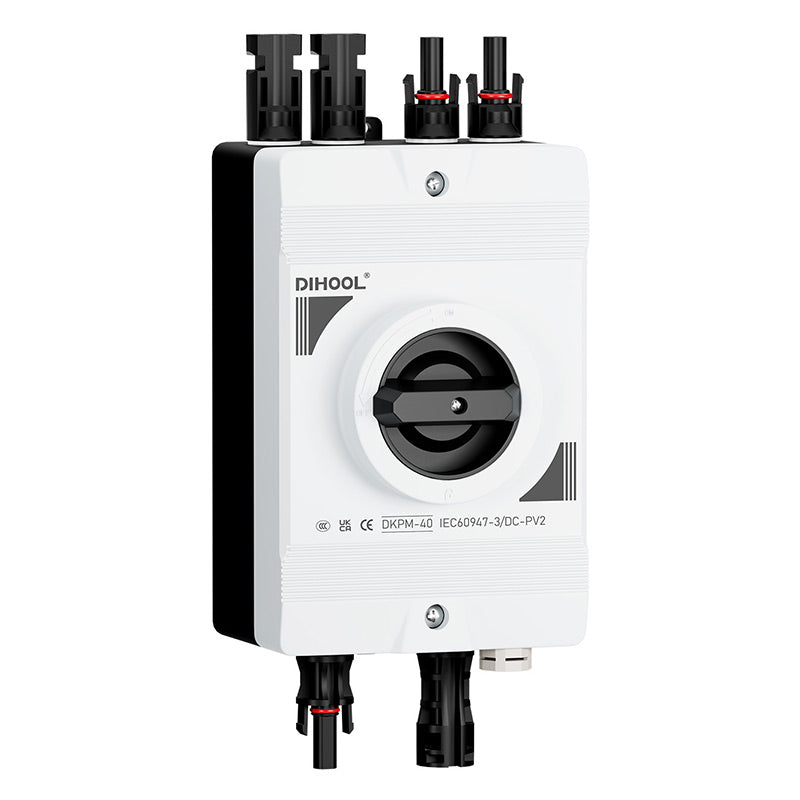

• TAIXI ELECTRIC DKPM Rotary PV Disconnect Switch 40A 1500V IP66
1 1

TAIXI ELECTRIC DKPM Rotary PV2 Disconnect Switch 40A

$39.00
$39.00
Sale Sold out

Low stock: 1 left

Condition: New

The TAIXI ELECTRIC DKPM rotary PV disconnect switch provides reliable circuit isolation between solar panels and inverters or batteries in 1-20kW residential and commercial photovoltaic systems. Its robust PC plastic enclosure is UV-proof, waterproof, dust-proof, and impact-resistant, achieving an IP66 protection rating for demanding outdoor environments.

Engineered for safety, the switch extinguishes arcs in under 8 milliseconds using a high-quality magnet and a double-break contact assembly. The handle can be locked in the off position, and the internal copper components support a maximum current of 40A, ensuring stable, long-lasting performance.

Brand TAIXI ELECTRIC
Model Number DKPM
Product Type Rotary PV Disconnect Switch
Rated Insulation Voltage (Ui) 600V / 1500V
Poles 2 / 3 / 4
Rated Current 20A / 40A
Rated Short-time Withstand Current (Icw) 1kA, 1s
Rated Impulse Withstand Voltage (Uimp) 8.0kV
Polarity No polarity, + and - can be switched
Electrical Life 2000 cycles
Mechanical Life 10000 cycles
Waterproof and Dustproof Grade IP20 / IP66
Installation Type 35mm DIN Rail / Screw Fixing
Ambient Temperature -40°C to +85°C
Degree of Pollution 3
Standards Compliant IEC60947-3, AS60947.3
Use Category DC-PV2 / DC-PV1 / DC-21B
Applied Photovoltaic Array 1 / 2
Enclosure Material PC Plastic
Arc Extinguishing Time < 8ms
